Automotive relay
« on: March 14, 2021, 09:19:35 am »
Pressure switch has broke again.
Can’t seem to go and get those micro switches from
Anywhere local so ordered some but don’t come til Thursday
Read that I can install a automotive relay instead? Guessing it goes in same place of pressure switch? Anyone know which model etc to use on a standard shurflo model?
Cheers

Ste b

  • Posts: 362
Re: Automotive relay
« Reply #1 on: March 14, 2021, 10:51:03 am »
If you use a controller just bypass the pressure switch, permanently
The purpose of life is to have a life full of purpose

jim bean

  • Posts: 194
Re: Automotive relay
« Reply #2 on: March 14, 2021, 01:31:52 pm »
I don’t thats the problem  ;D

Spruce

  • Posts: 8462
Re: Automotive relay
« Reply #3 on: March 14, 2021, 06:05:19 pm »
Pressure switch has broke again.
Can’t seem to go and get those micro switches from
Anywhere local so ordered some but don’t come til Thursday
Read that I can install a automotive relay instead? Guessing it goes in same place of pressure switch? Anyone know which model etc to use on a standard shurflo model?
Cheers

No, it's used in conjunction with the pressure switch. The pressure switch activates the relay which carries the load to the motor.
A 40 amp headlight 12v relay with fly lead is what you want.

As has been said, a controller means you don't need a pressure switch.

https://www.ebay.co.uk/itm/40Amp-12V-Heavy-Duty-5-Pin-Changeover-Relay-Prewired-Base-Automotive-Car-Bike/362999837601?_trkparms=ispr%3D1&hash=item548479f3a1:g:cWkAAOSwG39exiQj&amdata=enc%3AAQAFAAACgBaobrjLl8XobRIiIML1V4Imu%252Fn%252BzU5L90Z278x5ickkBSh1VzQSTzkTiSV5EE%252FHQWIGpJs0e2iTrxAhgTApr3ZRN5pFJfoXmRG4I5wlWGHhrPqPqLGtzrk9OSpRySs8Uey7H6Wo0YEwFghudJuAosBMVe%252Fj3DSiK09iKJ4b6rtXleFVFrfS%252Bw1nKDGPpLaLh%252FbL2fGY3fpKUzOtLirJgY00b%252FZ0aqpm6YaMKrhAyM2MxUIH0P5S3fdy%252Bj%252BSItzNv5phhdozffpAr75ZHLkjI50ilX742NuGjMn7VpX9GdcVI2jRZMenPleijH6LTSkj1KJbhPo74C8vwBxQ6JpH6czld69w0eIBF8R4rk9bg01QKrtRbK%252FVrPXtv78t7u%252FoLkRhN0RvTRq4z2q5dhh1szMbMBIkHgKu%252FRE7UHRGY%252Bvr%252B47%252FZB2k6%252BzdoDxfVlu41w%252B5j8gE9fIvRPb4dHMRE1FUvAB0PpZoaaqeg7FlR%252Fwj%252FpO35X7Ng6DQ31MBlQv6fiy4L99o63rR%252FVCEz%252FEtpGc5ZQNhnKxIW8FDuJdcZuXhx9zb5HkdDQHRV0np4j3oKfw6HFpaENLep4yxyNEeA7Va7SeUjBFhz8MFsaTx5gyIPE3ulYPDtbcBe6lWTO6m0gDrJO32so%252FE67q07xWhEQqNaNstcN81Ci%252Fs08Sg6q5rO4RcEjSH%252FeGXMkKN9cKtAV63DF6F3JYkATUx0UJBM7E7q23SCdWEd3GckFPU636gqbo647r6vpys9dBSMZIzxfaq0s29wLESR3eVC%252BQSfrzQcymIgFYuT2BsdGaqLo68n08HC0ekUPVviG6HJgmA9CTQPDX8U5v654UstFwMOXs%253D%7Ccksum%3A36299983760115f3c7077426460ea6bd7717e3fac2a6%7Campid%3APL_CLK%7Cclp%3A2334524
Success is 1% inspiration, 98% perspiration and 2% attention to detail!

The older I get, the better I was ;)

jim bean

  • Posts: 194
Re: Automotive relay
« Reply #4 on: March 14, 2021, 06:53:01 pm »
I have a controller just never used it. I’ve took pressure switch all apart and cleaned it and fiddled with the adjustment screw and now it’s working right as rain  ???
May get the relay anyway does it just need to be wired in line with the pump then doesn’t need to be be in any certain position or anything ?
May wire in the controller at some point as putting two pumps in when I get some spare time !!

EandM

  • Posts: 2182
Re: Automotive relay
« Reply #5 on: March 14, 2021, 07:30:05 pm »
I have a controller just never used it. I’ve took pressure switch all apart and cleaned it and fiddled with the adjustment screw and now it’s working right as rain  ???
May get the relay anyway does it just need to be wired in line with the pump then doesn’t need to be be in any certain position or anything ?
May wire in the controller at some point as putting two pumps in when I get some spare time !!

Yes, what Spruce said.

 It goes between the pump and the pressure switch and takes the load of it.
I've been using them for about 15 years and am only on my second pump. The pressure switches lasted the pump life.

Cedric at Cleaning Spot used to sell the pressure switches for about a tenner.

Edit: Just looked and they're about £30

Spruce

  • Posts: 8462
Re: Automotive relay
« Reply #6 on: March 15, 2021, 07:16:29 am »
I have a controller just never used it. I’ve took pressure switch all apart and cleaned it and fiddled with the adjustment screw and now it’s working right as rain  ???
May get the relay anyway does it just need to be wired in line with the pump then doesn’t need to be be in any certain position or anything ?
May wire in the controller at some point as putting two pumps in when I get some spare time !!

https://www.12voltplanet.co.uk/relay-guide.html

Common practice is to permanently mount the relay vertically with the pins downward. This ensures the innards are protected from moisture.

This is a 5 pin relay so pin 87a isn't used. Just fold that wire over and wrap some insulation tape around it.

Hopefully you have 2 wires coming from your battery to run your pump; a red positive and a black negative. Hopefully there is a 10 amp fuse fitted close to the battery on the red cable followed by an on/off switch further down the red cable. The red cable then will go from your on/off switch to the pressure switch and then into your pump. The black negative will go back from your pump to the battery. That's what you should have.

To fit the relay you need to cut the red cable somewhere after the on/off switch and before the pressure switch. That cut cable then needs to connect to pin 87 on your relay. The red wire from your pressure switch into the motor needs to be removed at the pressure switch or cut where convenient between the p/s and the motor. The cable going into the motor is connected up to pin 30 on the relay. (When this is done the pressure switch shouldn't be connected to anything.)

A new wire needs to be spliced into the red cable between your on/off switch and pin 87 of your relay. This should have an inline fuse holder with a low amp fuse such as a 3 amp one. After the fuse that wire will go to the pressure switch on the pump. The wire leaving the pressure switch that would normally go to the motor now goes to pin 85. Pin 86 on the relay will be a black wire to earth. It will probably be best to splice that into the cable from the pump that goes back to the battery.

You need to sit down and plan how and where you are going to cut and join wires. I'm a great believer in soldering joins with shrink wrap to seal and insulate it. Halfords do have a range of male and female cable joiners and a crimping tool. You will also need a roll of red and black cable as well as push on terminals. (The red cable needs to be at least 15amp, but the black cable can be of lower amperage as it doesn't carry much of a load.)
The push on terminals on the Shurflo pump are smaller than the normal 6mm connectors commonly used.



Success is 1% inspiration, 98% perspiration and 2% attention to detail!

The older I get, the better I was ;)

Ste b

  • Posts: 362
Re: Automotive relay
« Reply #7 on: March 15, 2021, 07:41:41 am »
It would be easier to fit the controller.
The purpose of life is to have a life full of purpose

jim bean

  • Posts: 194
Re: Automotive relay
« Reply #8 on: March 20, 2021, 09:36:38 pm »
It would be easier to fit the controller.

Seems so after reading all that sorry spruce for the explanation!

I will fit controller although pump is working fine and dandy

M & C Window Cleaning

  • Posts: 1581
Re: Automotive relay
« Reply #9 on: March 21, 2021, 08:47:15 am »

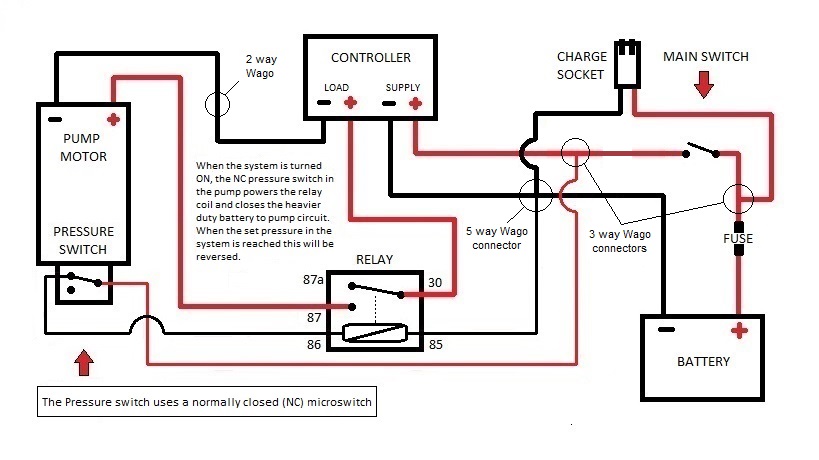

This is the diagram I followed with my trolley with a brief explanation how it works:

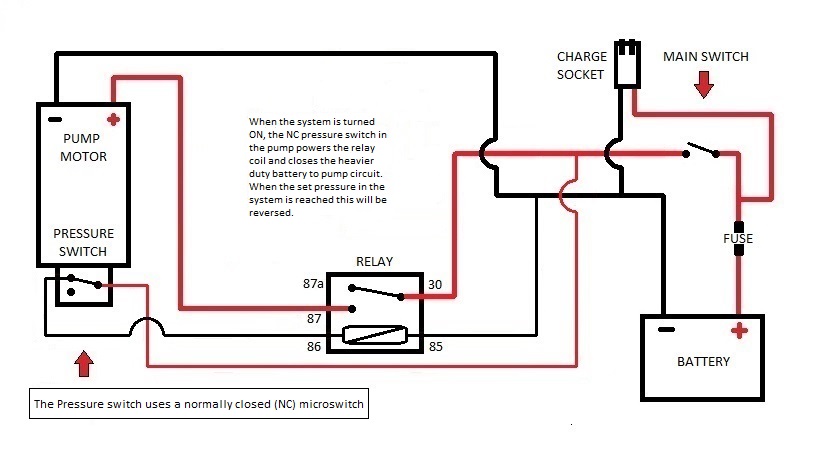

If you want to wire it up without a controller:



As you can see I use Wago connectors. They are still going strong after a year of use.

I use a relay because my controller doesn't have a calibration feature
