JamesRoberts

  • Posts: 3
Airflex Mini 220
« on: October 24, 2018, 06:06:39 pm »
Anyone got one of these?
How do you adjust pump psi?
Thanks

john martin

  • Posts: 2699
Re: Airflex Mini 220
« Reply #1 on: October 24, 2018, 07:41:24 pm »
The alltec version ..  the express uses this little regulator , more than likely same on mini
Its a low flow pump though so you mightn't do  much turning down

https://www.worldwidecleaningsupport.com/spare-parts/water-pumps/200-psi-regulator-valve

DB

  • Posts: 191
Re: Airflex Mini 220
« Reply #2 on: October 25, 2018, 07:06:23 pm »
Speak to Cleansmart...

It depends on what the original owners requirements were...they are built to specification

Mike Halliday

  • Posts: 11581
Re: Airflex Mini 220
« Reply #3 on: October 26, 2018, 09:33:11 am »
What type of pump is it? Some pumps are a set pressure and cannot be adjusted they just run at the maximum pressure they can produce

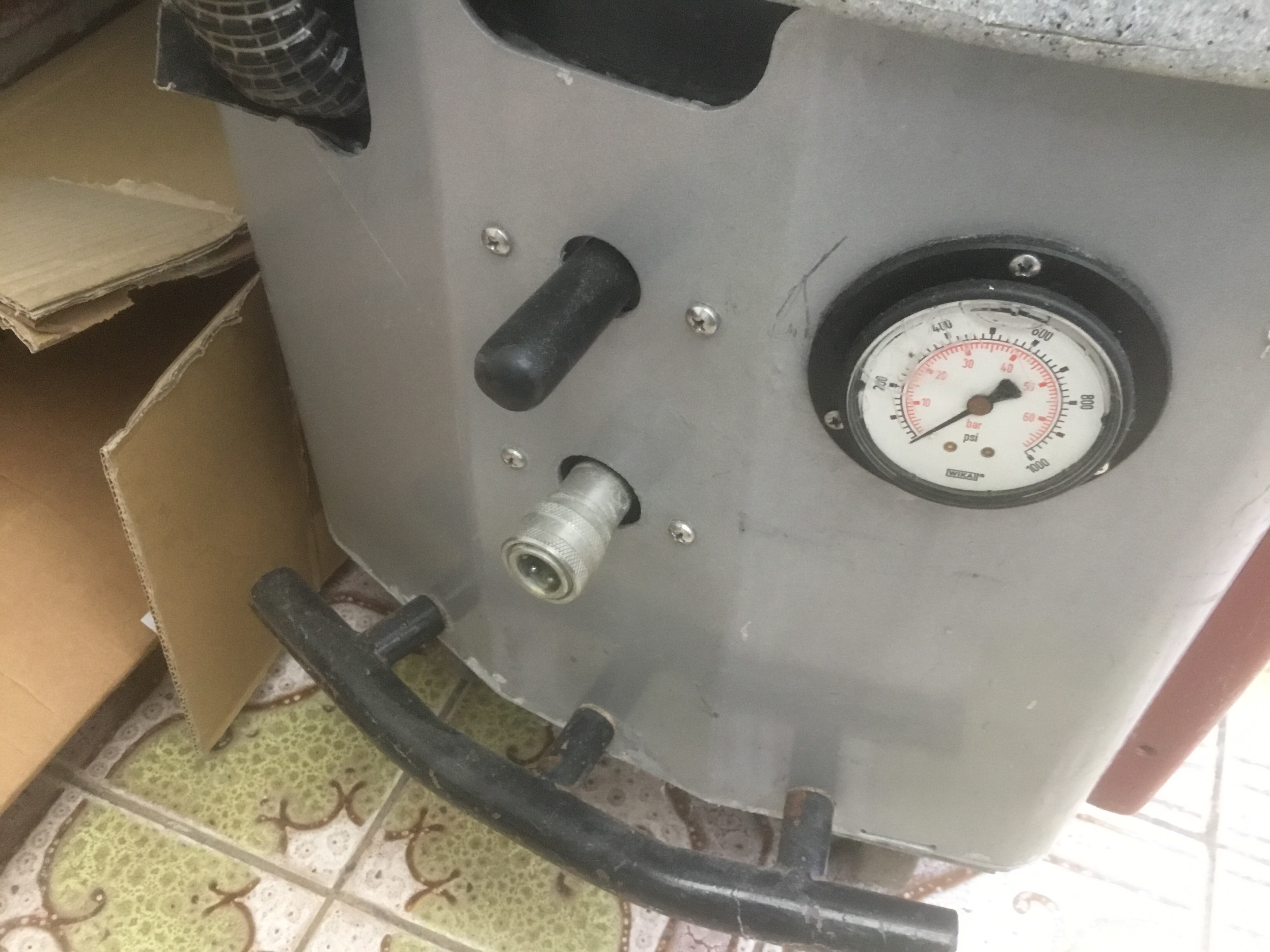

Take a photo, but if the pressure is meant to be altered then it will have a adjustment screw protruding out of the frame like this....

Mike Halliday.  www.henryhalliday.co.uk

john martin

  • Posts: 2699
Re: Airflex Mini 220
« Reply #4 on: October 26, 2018, 11:58:54 pm »

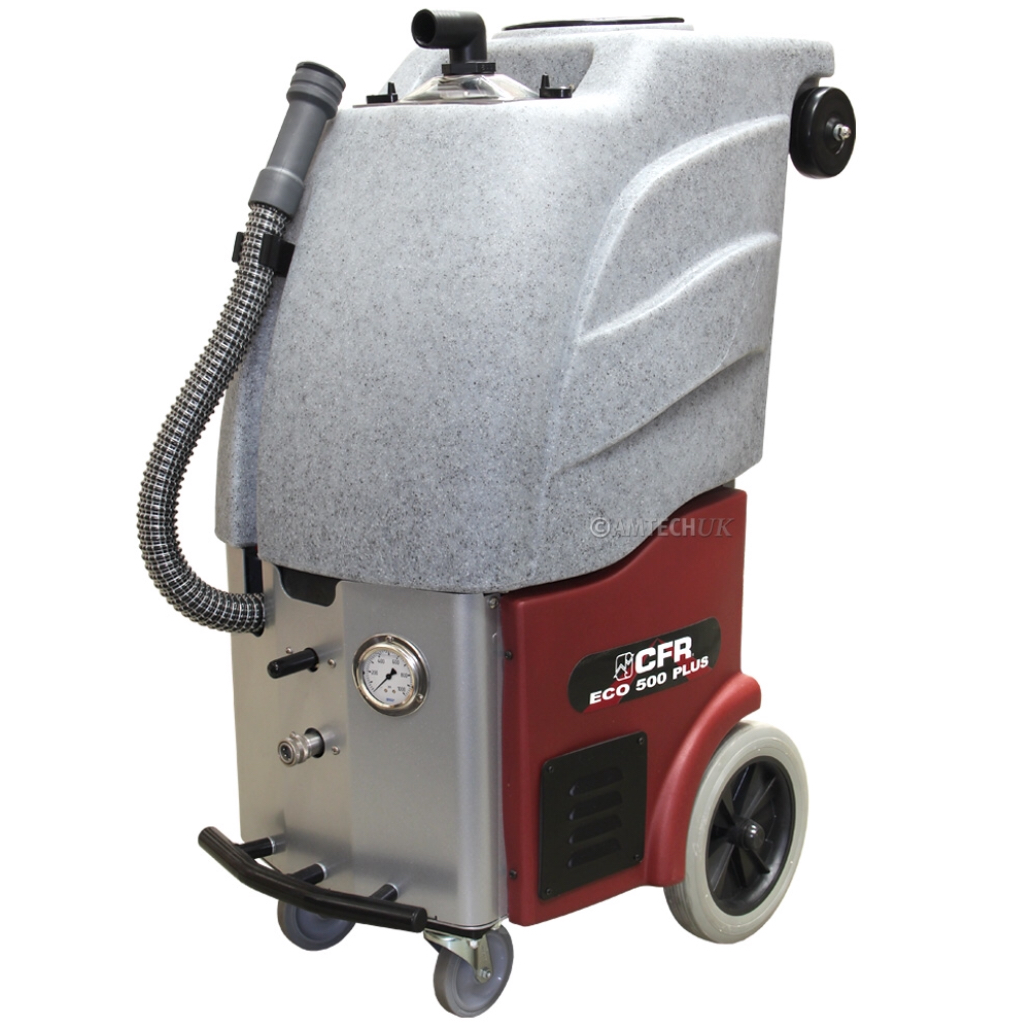

^ whats the machine in the pic mick ?

anywhere they advertise a 220psi pump , its the aquatec diaphragm pump ,  the one i got with the alltec express has a demand switch ... but also a small regulator .
since then the demand switch burned up ... as they do  .... so i just bypassed it ... and then with some more fooling around i removed the regulator .... so no it just runs full and continuous ... which its happy to do as its an internal bypass .
just to confuse things the 220 pump now has 250 on it ( slightly newer perhaps ) ...on woodbridges site


Mike Halliday

  • Posts: 11581
Re: Airflex Mini 220
« Reply #5 on: October 27, 2018, 06:53:34 am »
I’ve had this ages and never used it as it had a fault on one of the vacs but i’ve Fixed that. I’m going to give it a go as a wet vac with auto pump out.

With the recycle system I can put a solution line onto the machine poke it into the drain then  as I work it will pump out the tank as I clean. I will Use my van water pump & heater for the solution supply

I just need to alter the inlet spade to take a 2 inch hose

Mike Halliday.  www.henryhalliday.co.uk

john martin

  • Posts: 2699
Re: Airflex Mini 220
« Reply #6 on: October 27, 2018, 10:26:54 pm »
interesting apo idea  ,  not the easiest machine to modify id say , but might work well
