[jo5hm4n]

Doing my first DIY Van System hopefully soon for a second van.

I'm absolutely hopeless at DIY seriously.  I will give it my best shot and not after anything fancy just something simple, tidy that does the job.

Anybody willing to send me some photos via email of their DIY Systems for me to have some idea of what looks good and works well.  Looking for inspiration.

Thanks guys.

info@quantumshine.co.uk

[robbo333]

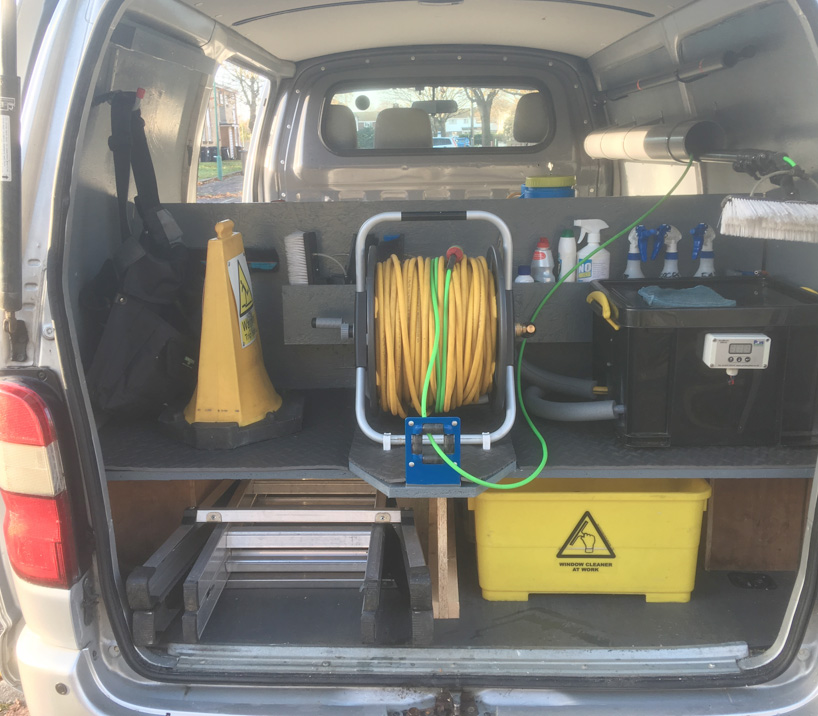

Here's mine.

[Smudger]

That’s neat - just a note my early setups were wood after a couple of years they suffered really badly from rot and damp - where possible go for steel ( one of my lads is a great welder which makes it a breeze ) we have been putting in a system today so I’ll get some pics for you

Darran

[Jon_Phelps]

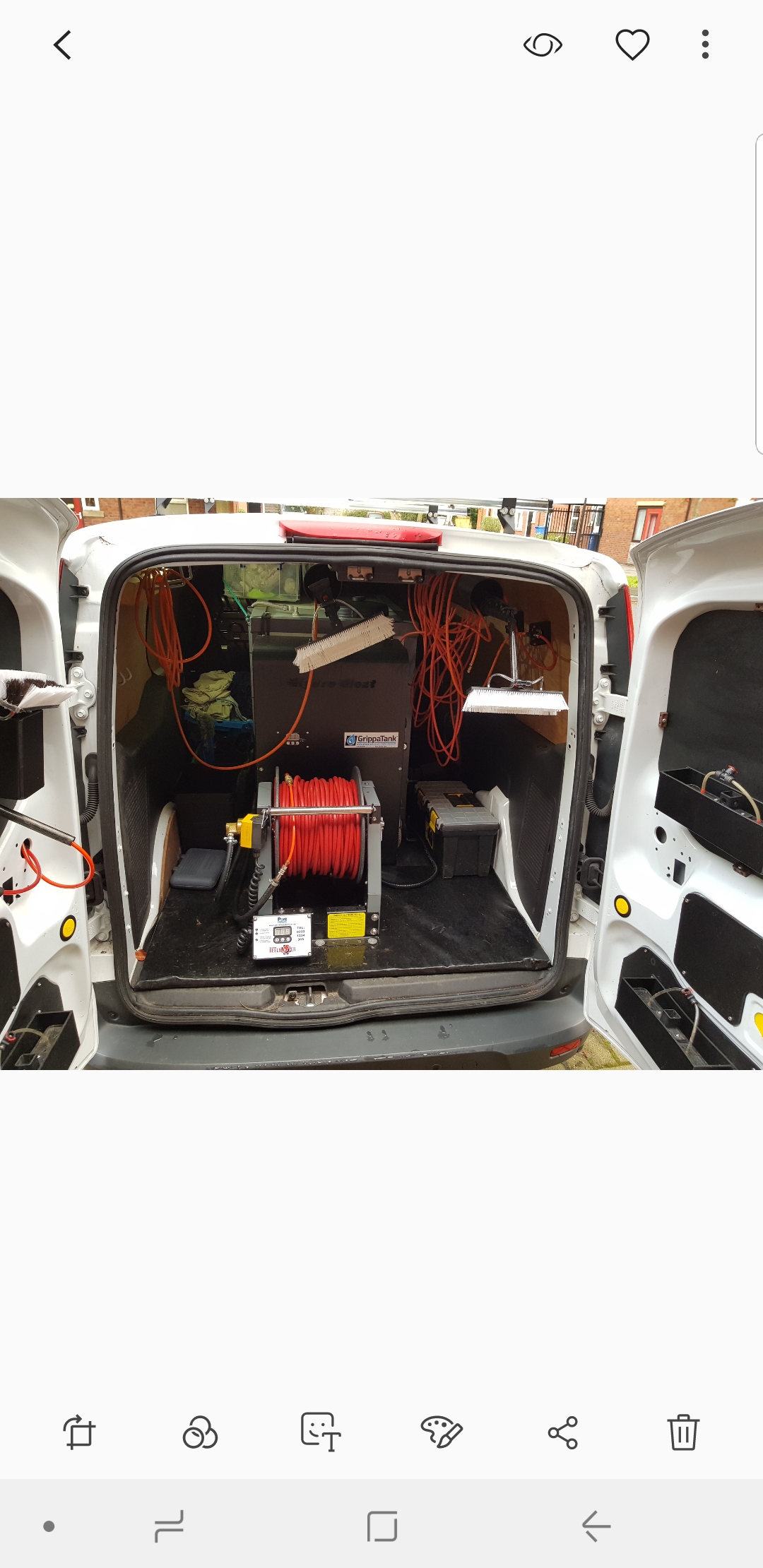

This is my DIY System.  I bought from various parts over the years (as and when needed) and finished with this.  I always used to strap the tank down but now its all bolted and secure.  much neater that way too!

[nathankaye]

Warning, video time  😱😎
😴

https://youtu.be/_qnqr0GYOXk

Completed look (only 25 seconds lol)
https://youtu.be/EYDx0mi7omg

[paul alan]

https://www.youtube.com/watch?v=Kp0aBbLewig

If you don't have electric reels already mate, get some. It makes a big difference to your day.


The immersion is a lifesaver in the winter, I don't use it other times of the year but in winter it's awesome.

[paul alan]

I'll be around mate if you need a hand with owt. I can also put you onto the guy who bolted my tank in and fabricated the hose guides.

He'll make you a frame if you like and save you a good few quid.

[paul alan]

This is my DIY System.  I bought from various parts over the years (as and when needed) and finished with this.  I always used to strap the tank down but now its all bolted and secure.  much neater that way too!

Nice

[dazmond]

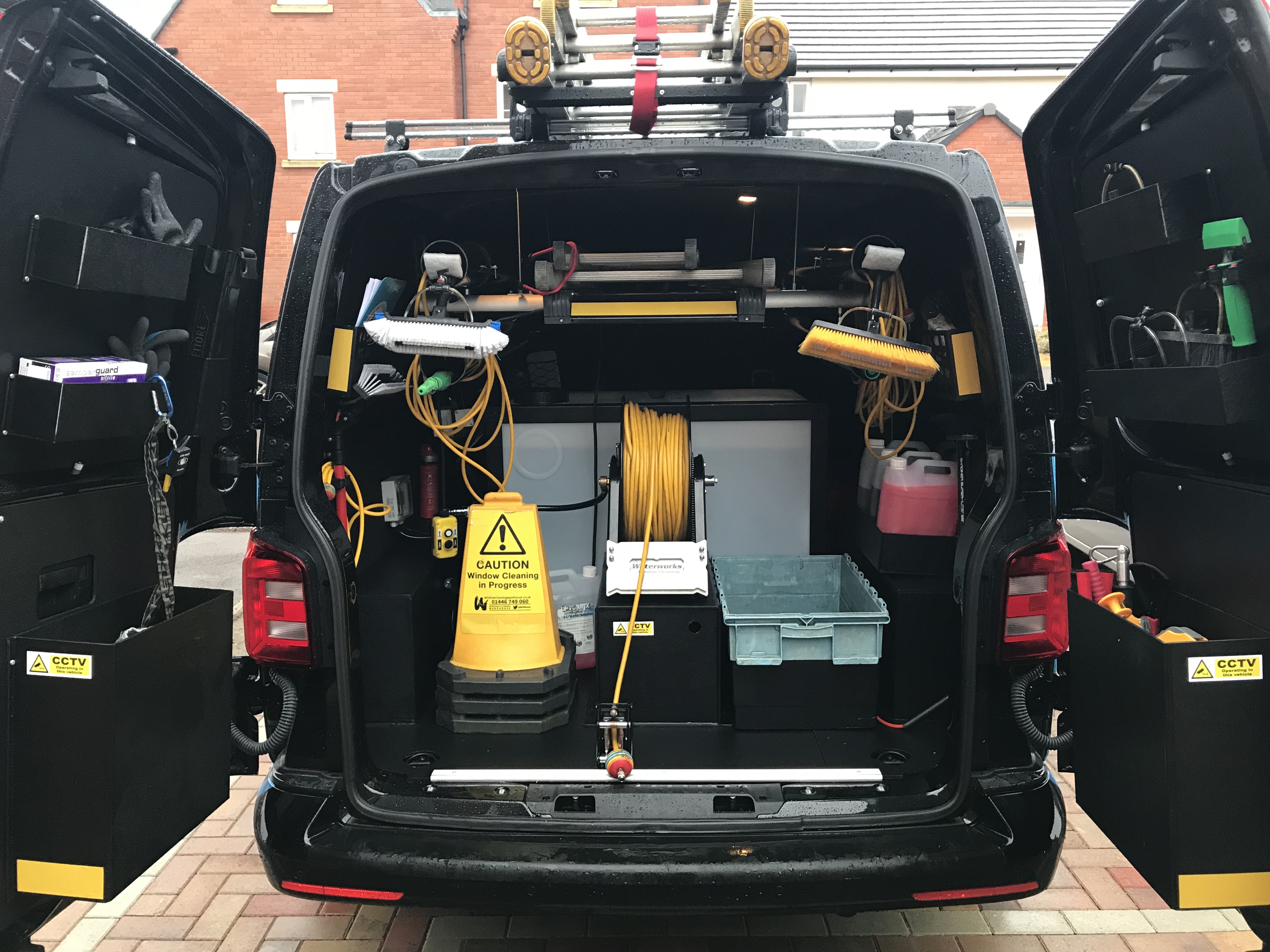

Pure freedom cage,500L tank and electric reel...retro fit grippatank hydroheat,extreme 25 and 47....black soil pipes from b and q for pole holders....door cards/brush holders from grippatank too....

to the left of my reel is a socket set and behind that a black bin for dirty cloths then trad gear,chemicals,bucket with a lid,folding step and on top of the tank more cloths,scrapers,spare t mops/rubbers etc(all easy accessible from the side van door)....

to the right is my toolbox with spare connectors,PTFE spray etc and behind that my 2 x 105 numax leisure batteries....

[dazmond]

my electric reel is just screwed into a piece of black plastic covered plywood that fits snugly in front of the heater....

[jonboywalton75]

Yours isn't totally DIY is it Daz?

[John Mart]

Yours isn't totally DIY is it Daz?

I thought that.

[jo5hm4n]

Here's mine.

That look's good can i see a photo from side of van with tank in view?

[jo5hm4n]

Warning, video time  😱😎
😴

https://youtu.be/_qnqr0GYOXk

Completed look (only 25 seconds lol)
https://youtu.be/EYDx0mi7omg

Good video Nathan, helpful!  I like your experimenting

[jo5hm4n]

I'll be around mate if you need a hand with owt. I can also put you onto the guy who bolted my tank in and fabricated the hose guides.

He'll make you a frame if you like and save you a good few quid.

Cheers mate, good video your setup is so neat and tidy!  Thanks i'll let you know if i need your guys details.  Appreciate any help aswell if i get stuck with anything means alot.

[jo5hm4n]

Pure freedom cage,500L tank and electric reel...retro fit grippatank hydroheat,extreme 25 and 47....black soil pipes from b and q for pole holders....door cards/brush holders from grippatank too....

to the left of my reel is a socket set and behind that a black bin for dirty cloths then trad gear,chemicals,bucket with a lid,folding step and on top of the tank more cloths,scrapers,spare t mops/rubbers etc(all easy accessible from the side van door)....

to the right is my toolbox with spare connectors,PTFE spray etc and behind that my 2 x 105 numax leisure batteries....

Nice setup Daz, did grippa tank fit that for you, or did you just buy all the parts and do it yourself.

[dazmond]

Yours isn't totally DIY is it Daz?

so what?the guy wants some inspiration!

[dazmond]

Pure freedom cage,500L tank and electric reel...retro fit grippatank hydroheat,extreme 25 and 47....black soil pipes from b and q for pole holders....door cards/brush holders from grippatank too....

to the left of my reel is a socket set and behind that a black bin for dirty cloths then trad gear,chemicals,bucket with a lid,folding step and on top of the tank more cloths,scrapers,spare t mops/rubbers etc(all easy accessible from the side van door)....

to the right is my toolbox with spare connectors,PTFE spray etc and behind that my 2 x 105 numax leisure batteries....

Nice setup Daz, did grippa tank fit that for you, or did you just buy all the parts and do it yourself.

got my local garage to fit the tank and frame(bolted through the eyelets with pieces of angle iron,no drilling through the van floor!)and grippatank to fit the diesel heater,pump,controller,batteries and b to b charger.....i did fix in place and wire up my electric reel and install the pole holders so their is a small bit of DIY....

...oh and i fitted the door cards and brush/gooseneck holders on the inside of the van back doors.....

[jonboywalton75]

Pure freedom cage,500L tank and electric reel...retro fit grippatank hydroheat,extreme 25 and 47....black soil pipes from b and q for pole holders....door cards/brush holders from grippatank too....

to the left of my reel is a socket set and behind that a black bin for dirty cloths then trad gear,chemicals,bucket with a lid,folding step and on top of the tank more cloths,scrapers,spare t mops/rubbers etc(all easy accessible from the side van door)....

to the right is my toolbox with spare connectors,PTFE spray etc and behind that my 2 x 105 numax leisure batteries....

Nice setup Daz, did grippa tank fit that for you, or did you just buy all the parts and do it yourself.

got my local garage to fit the tank and frame(bolted through the eyelets with pieces of angle iron,no drilling through the van floor!)and grippatank to fit the diesel heater,pump,controller,batteries and b to b charger.....i did fix in place and wire up my electric reel and install the pole holders so their is a small bit of DIY....

...oh and i fitted the door cards and brush/gooseneck holders on the inside of the van back doors.....

This would be a good system for you Josh, as long as you don't mind spending about £6000.00 on the interior of your van, it might even be more than that😮😮😮😮

[Smudger]

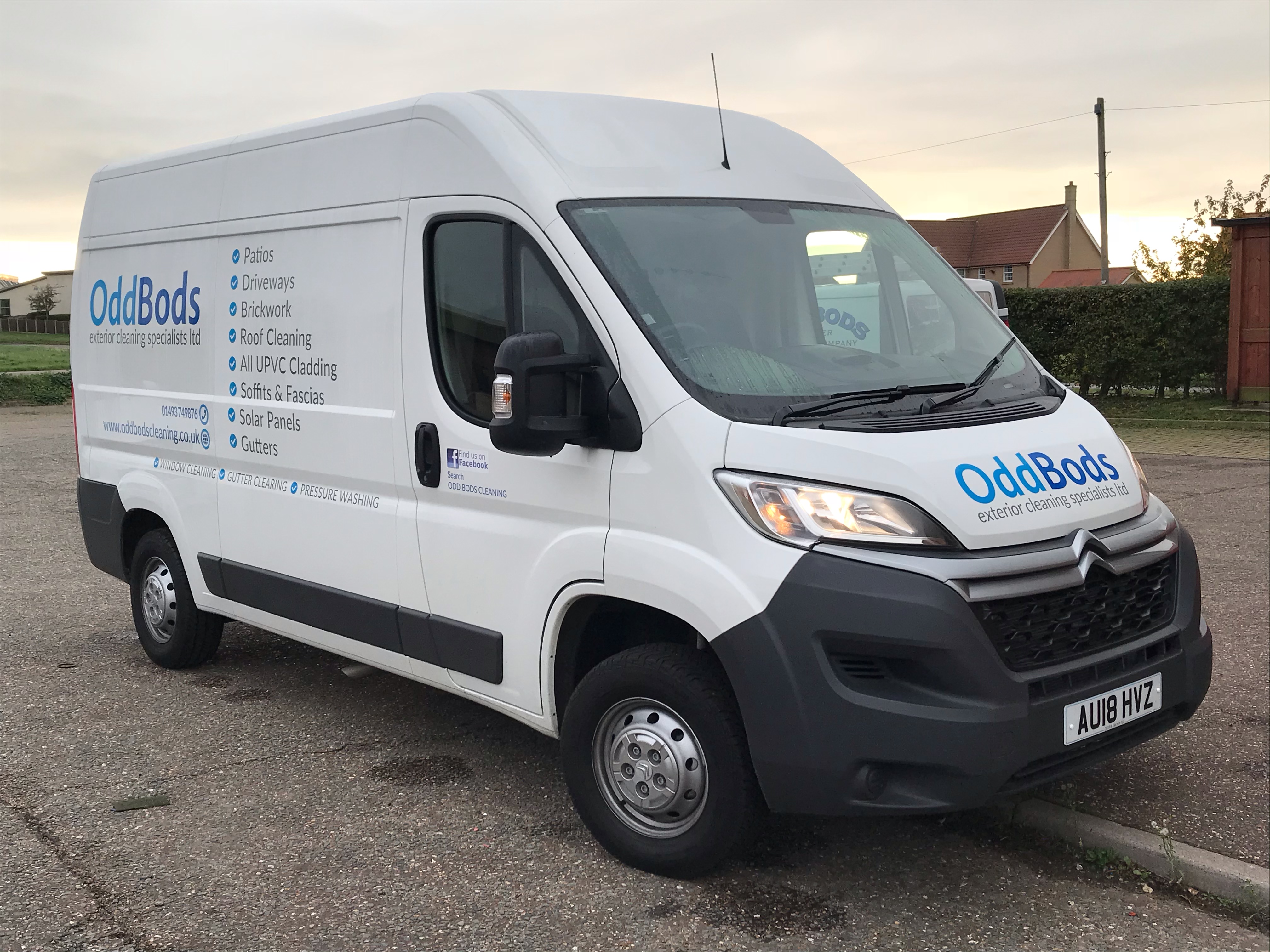

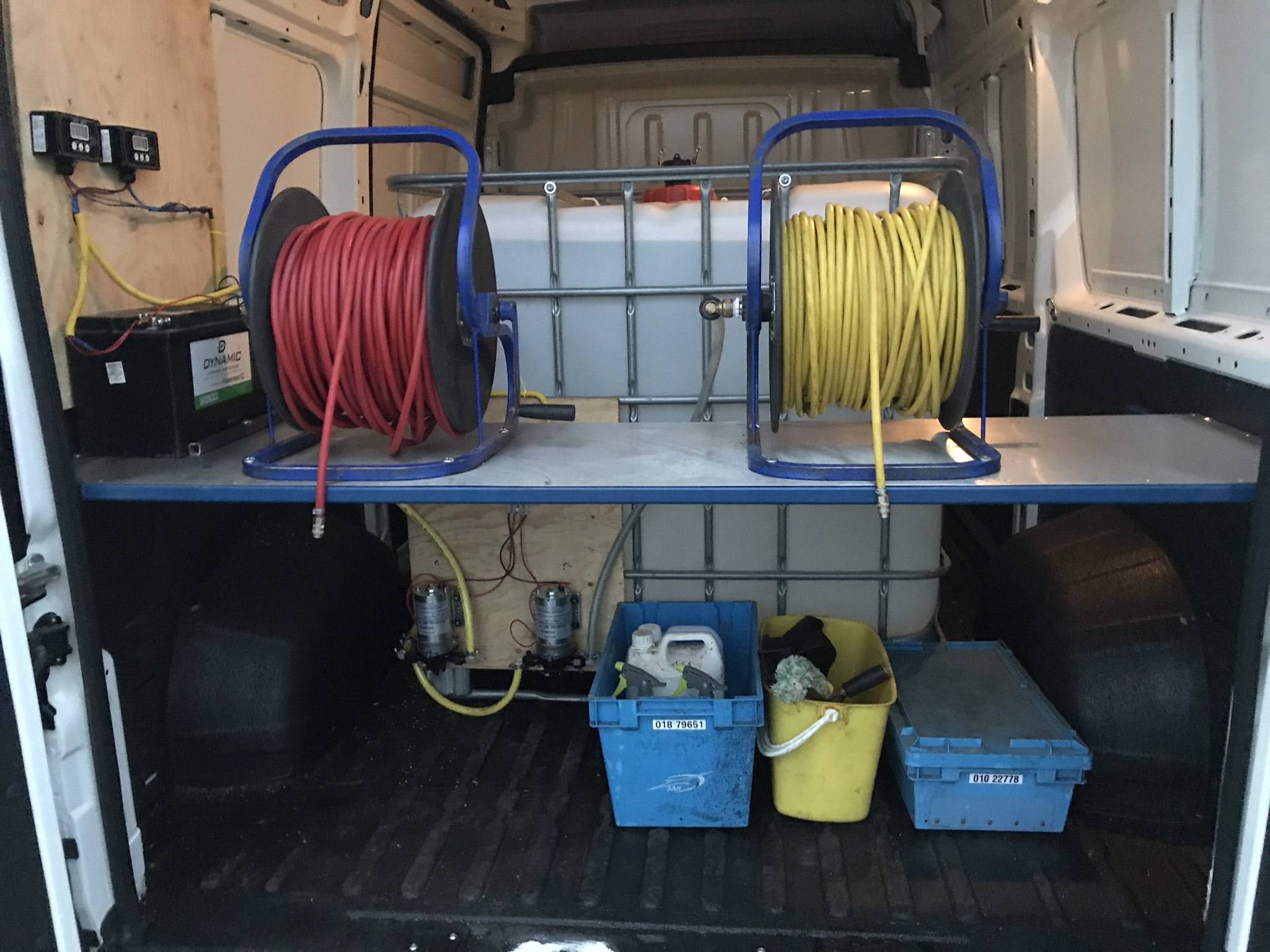

Not quite finished but you get the idea -

Protector coat floor - 1000 litre tank fully baffled - steel frame and stainless steel shelf
