[C-Thru.]

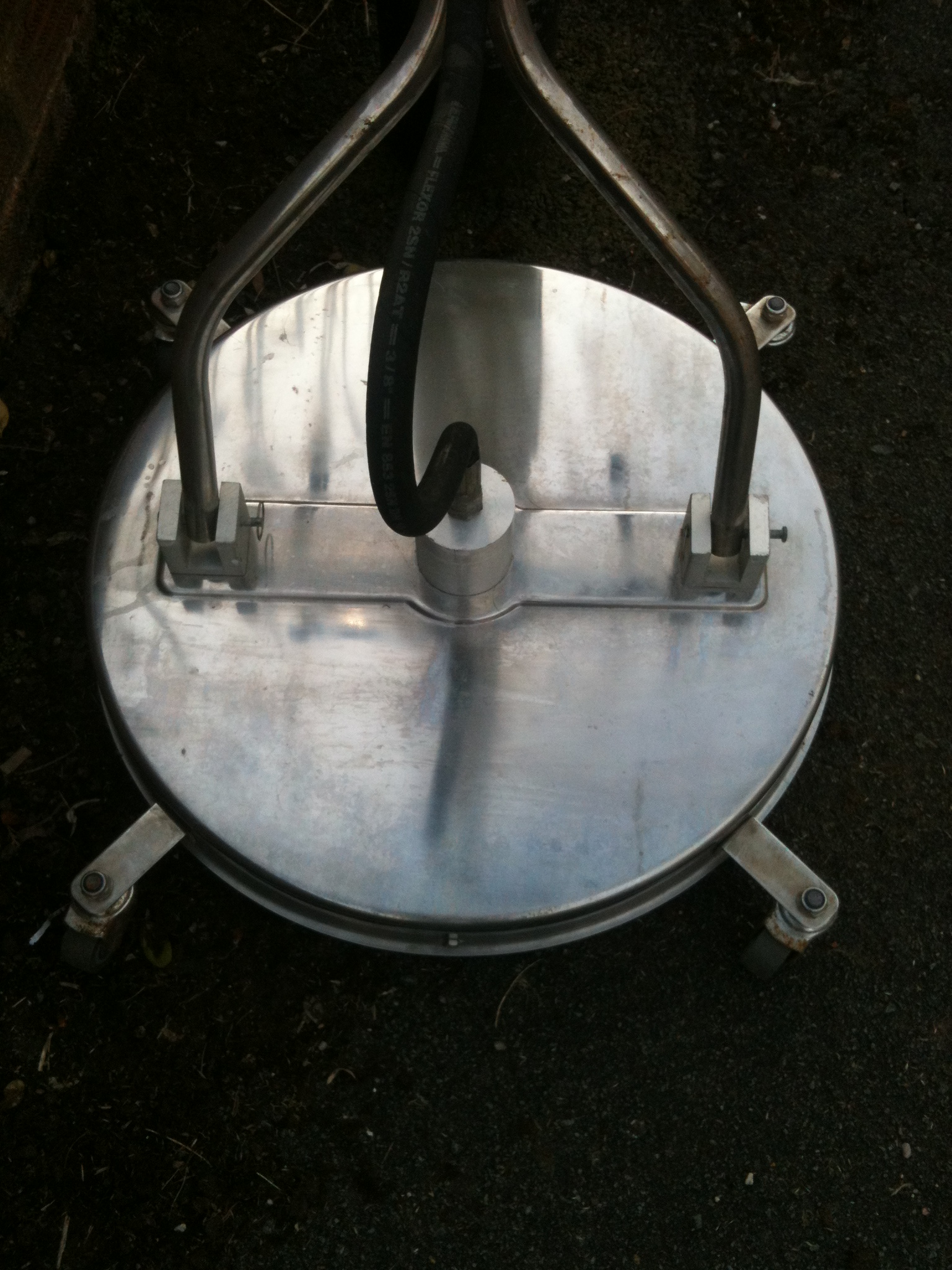

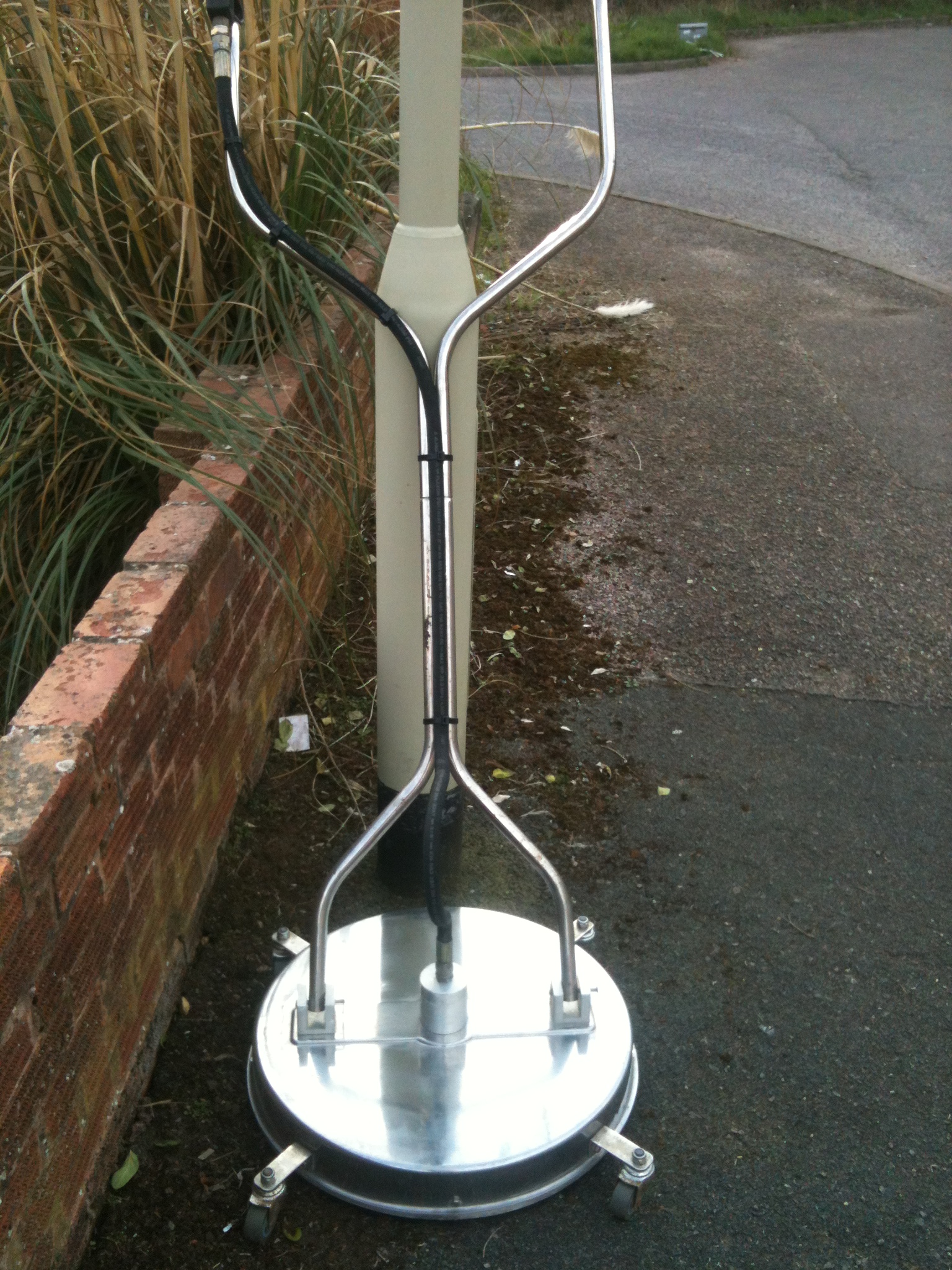

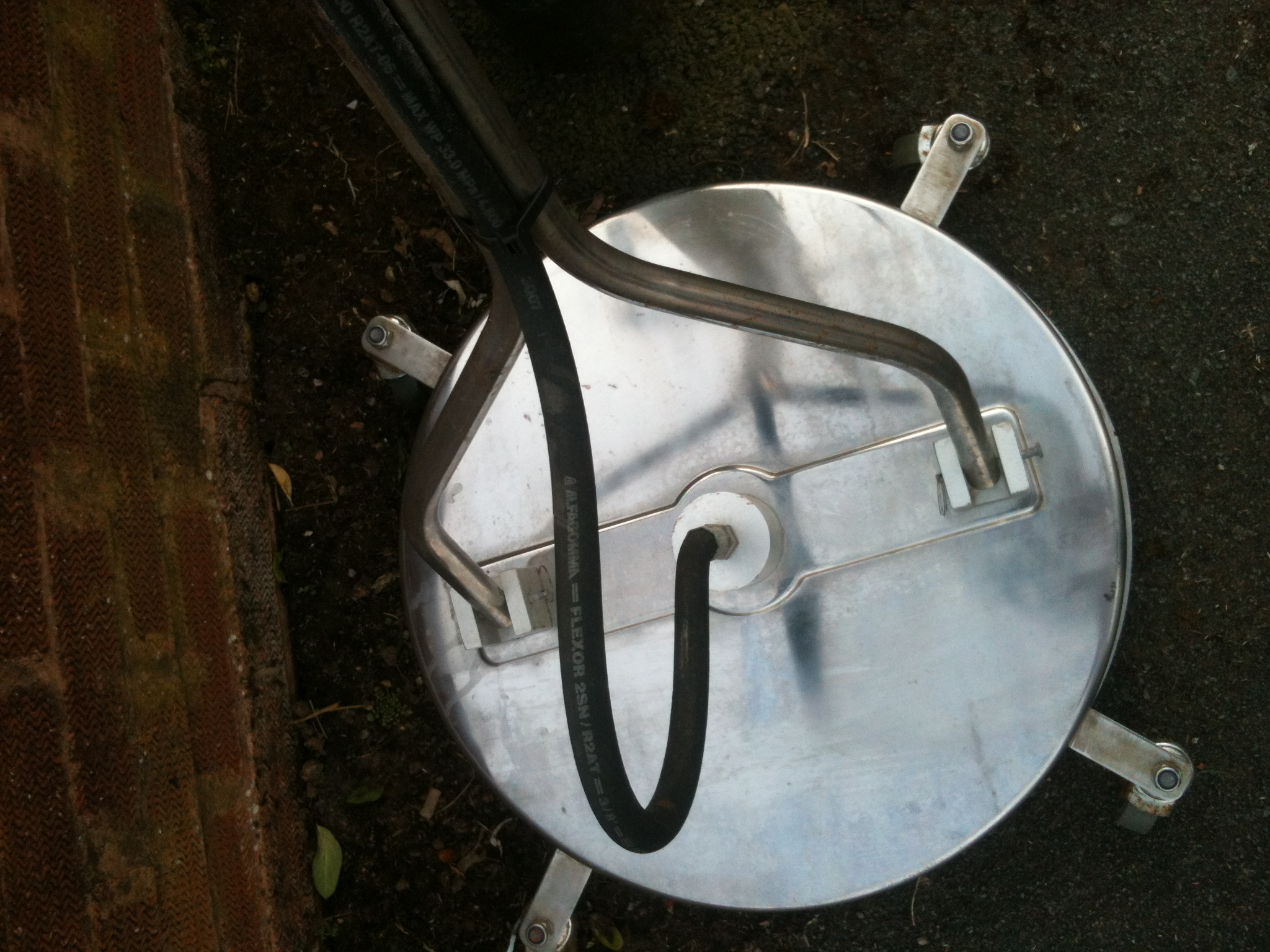

Hi Guys, need help, does anybody know what make this rotary cleaner is?
I bought it at auction and works well, but when not been used for a while it wont rotate unless I drown the center peice in WD40 of similar. Once its going its great.
I think it needs re greasing but there is no grease nipple.
My eventually have to replace rotator unit or whatever its called (center bit)
Any and help much appreciated.
Goochie,

[chris scott]

Looks like one Jetmac used to sell.
Try this https://www.youtube.com/watch?v=-7BhGOvz21g

[Ben Marriott]

Hi,

What you have there is a Chinese repro of a mosmatic product which are imported by several companies within the UK.

The head unit on these is a wear part and should last about two years in my experience of them.  (They are actually pretty good)

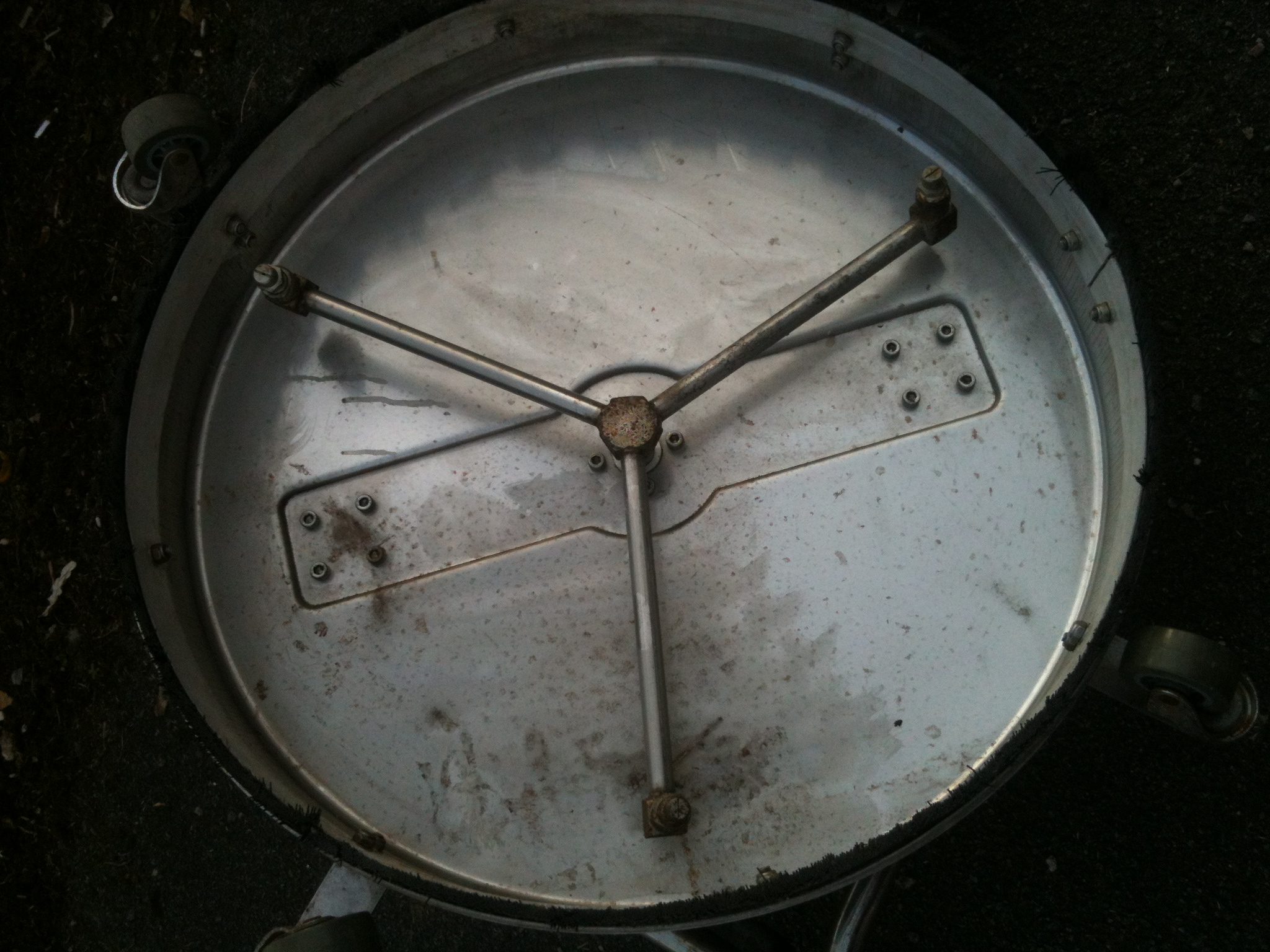

Yours has been changed to have a tri bar fitted, originally it would have been a twin.

A complete head unit (middle bit) should be about £60. They are non-greasable in the same way that Mos are sealed units.

The need to drown in WD is likely due to one of the ceramic bearing / seal trims picking up on the shaft. If it was a Whirlaway copy it could be rebuilt but Mos are not really designed for maintenance.

Any more questions do ask - see parts diagram attached.

Ben

[Kev Martin]

Ben

What a really helpful informative post!  I take my hat off to you!

Kev

[C-Thru.]

Ben, many thanks Mucker, brill post very helpful.
If I do need to change the Head Unit, where in UK do you think I could get one?

Cheers
