[reflect]

Hi, can anybody advise me on fixtures and fittings for a clarke SPE1200SS water pump.  In machinemart the assitant was wondering how I would reduce the 1 1/2" bore hole down to standard hose pipe.  There is no thread on the hole and he said jubilee clips would just fall off with the pressure.  Loads of you use water boosters so I would really appreciate any advise on this subject.

[Frankybadboy]

just take to your local pumb center and they will have the fittings surely

[GoodFella2006]

What you need is here pal.

[king marko]

I bought a Clarke pump off lee gls who regularly posts on here - it came with standard hose fittings so might well be worth asking him chap

[SPE]

bumped this to the top reflect because wondering if you have gone ahead and bought one of these ?
I have a machine mart at bottom of my road and considering buying one for my 4040 and is cheaper than the one I was previously looking at there.
What ro do you have and pressure ?
thanks
Simon

[britishwill]

Sorry to ask again but the links don't work?

I have moved to a house with low pressure and have purchased water pump from Clarke CMB240E. Could anyone tell me what fittings I need.

Thank you so much

[Simon Trapani]

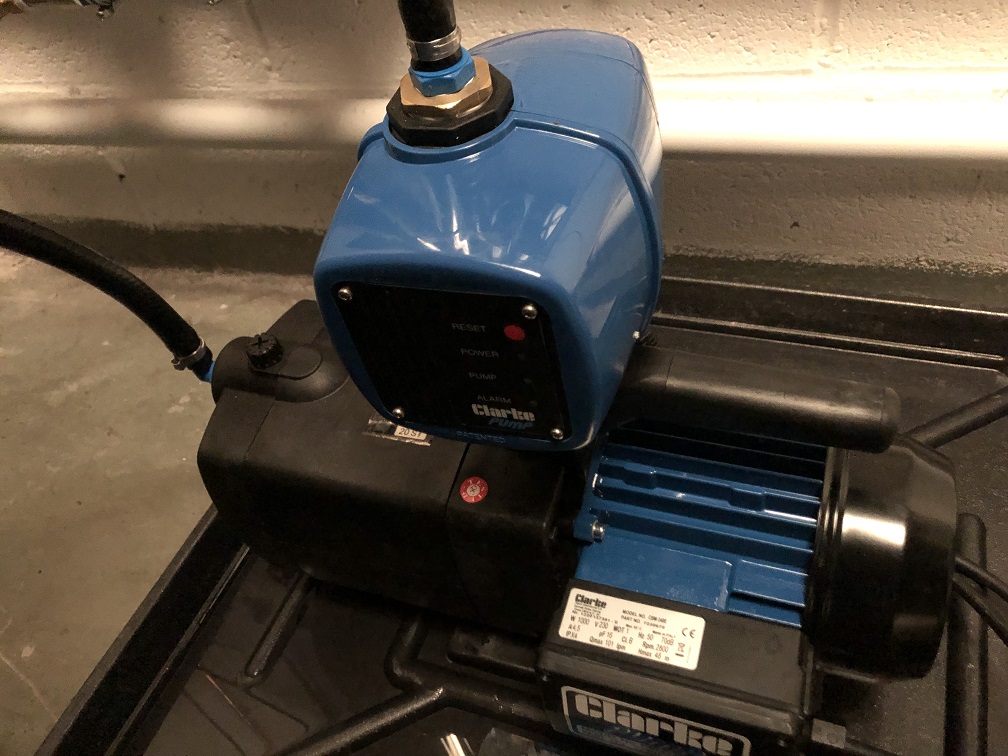

Thread is 10 years old. I have that booster pump though. Just reduce it down with barbs & jubilee clips.

[Scrimble]

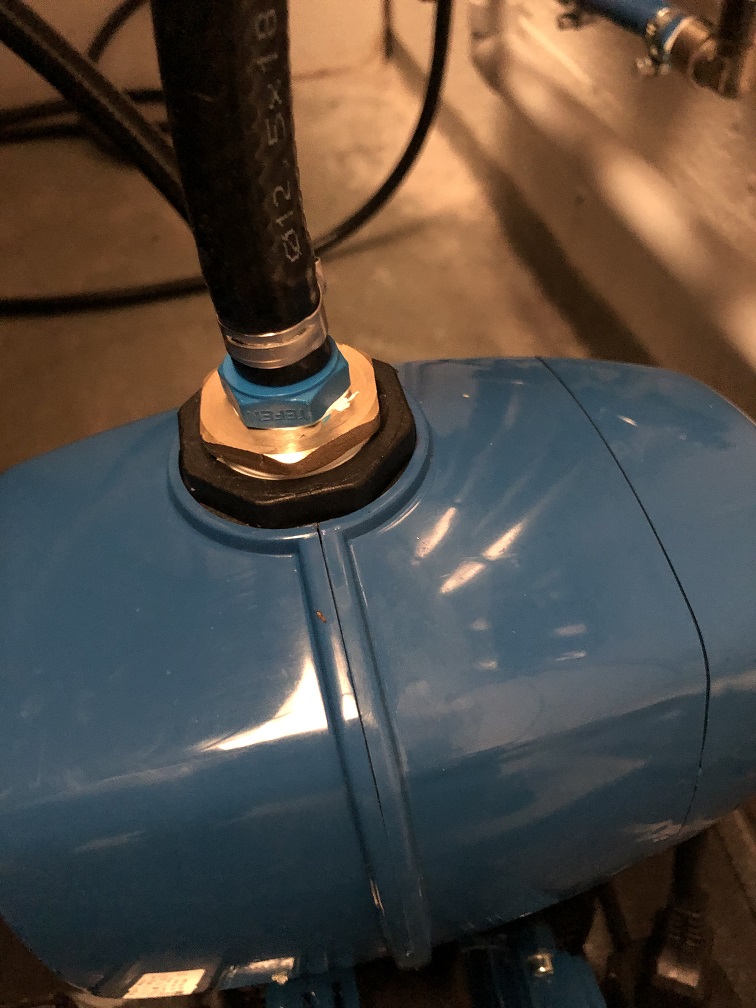

you need a 1" to 1/2" bush available from screwfix  https://www.screwfix.com/p/bush-1-x/42740

then you need to 1/2"bsp to 12 mm barb, avalible from advanced fluid solutions https://www.advancedfluidsolutions.co.uk/12mm-12-hose-tail-x-12-bspt-male-straight-tefen-blue-nylon-fitting-3839-p.asp

use ptfe thread tape on the threads and and secure the 1/2" hose with pinch clips or jubilee



clips

[britishwill]

You are a diamond, thank you for taking the time to reply.

Best wishes and hope I can help you out one day.

Cheers

[Simon Trapani]

Yeh nice one Scrimble. I’ve just ordered those bits also as mine was a bit of a lash up.

[Scrimble]

Your welcome

[johnny bravo]

you need a 1" to 1/2" bush available from screwfix  https://www.screwfix.com/p/bush-1-x/42740

then you need to 1/2"bsp to 12 mm barb, avalible from advanced fluid solutions https://www.advancedfluidsolutions.co.uk/12mm-12-hose-tail-x-12-bspt-male-straight-tefen-blue-nylon-fitting-3839-p.asp

use ptfe thread tape on the threads and and secure the 1/2" hose with pinch clips or jubilee



clips

what pump model is this scrimble, price

[Spruce]

you need a 1" to 1/2" bush available from screwfix  https://www.screwfix.com/p/bush-1-x/42740

then you need to 1/2"bsp to 12 mm barb, avalible from advanced fluid solutions https://www.advancedfluidsolutions.co.uk/12mm-12-hose-tail-x-12-bspt-male-straight-tefen-blue-nylon-fitting-3839-p.asp

use ptfe thread tape on the threads and and secure the 1/2" hose with pinch clips or jubilee



clips

what pump model is this scrimble, price

I believe its the latest version of this
https://www.machinemart.co.uk/p/cbm240e-1in-multi-stage-230v-booster-pum/

If you are looking to booster water pressure for your 300gpd r/o then this is not suitable.

[johnny bravo]

4040 Ro

[johnny bravo]

if looking for a booster pump for a smaller Ro   200 / 450  use  a Aquatic from pure freedom  around £90
