andyralph

  • Posts: 362
Ova 8
« on: February 12, 2021, 02:59:17 pm »
Hi all any body use a tubless set up with this  pole and how to do it thanks andy
Logged

Smudger

  • Posts: 13438
Re: Ova 8
« Reply #1 on: February 12, 2021, 03:06:53 pm »
yes.

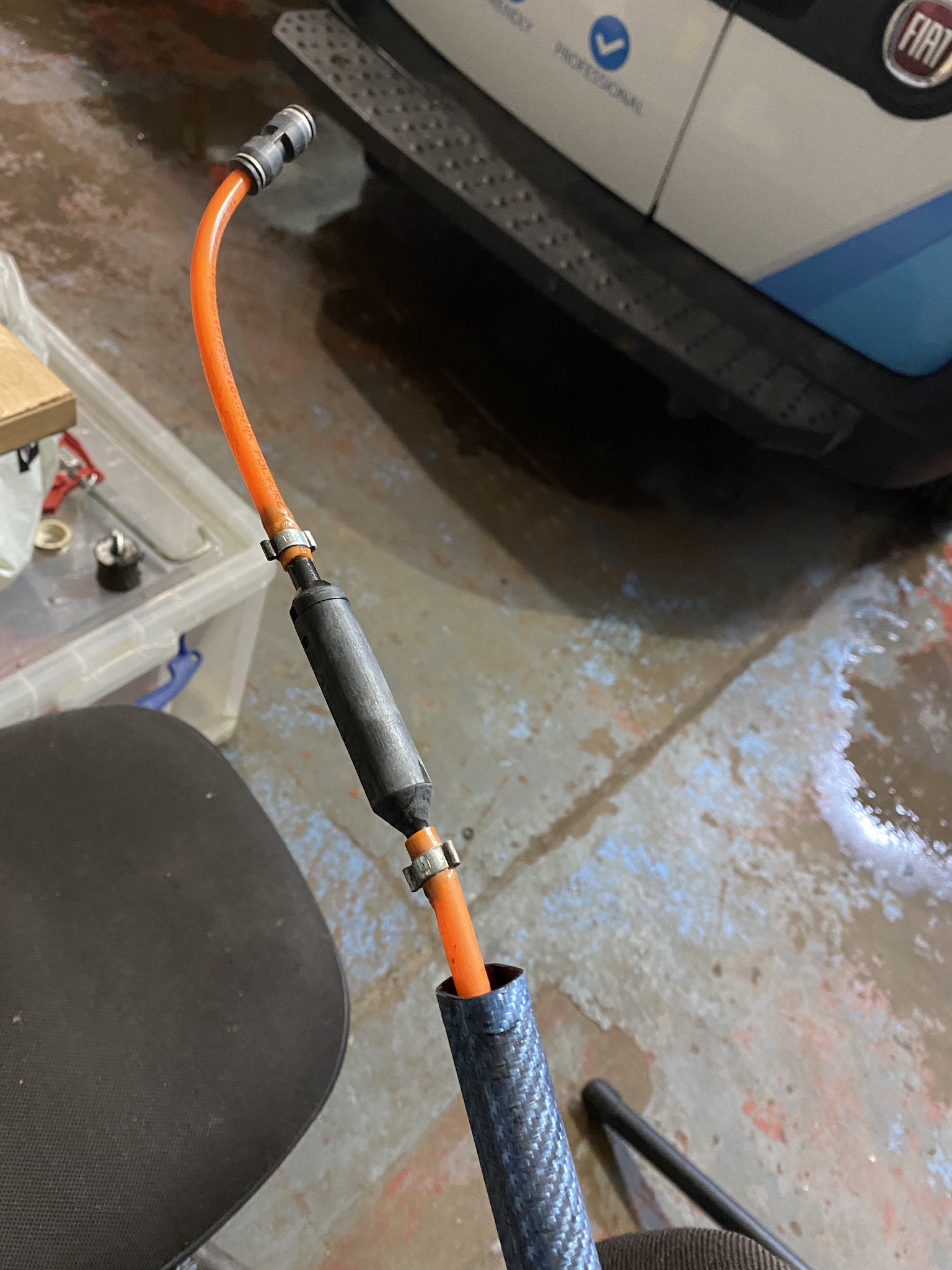

The univalve does not fit inside section 1 so you need measure the pole hose to fit the univalve at the bottom of this section then another piece of pole hose to stick out the end of the pole by an inch.

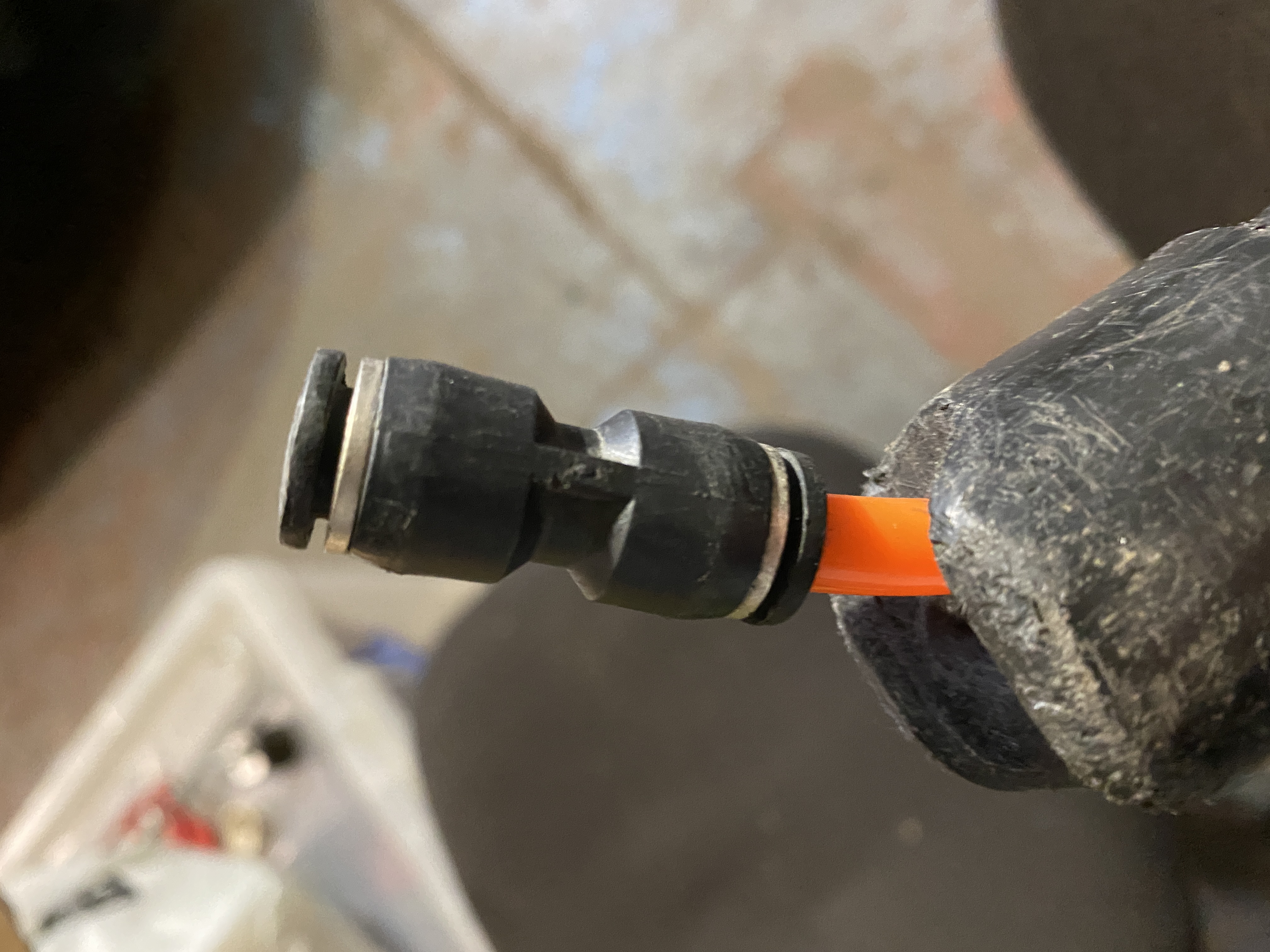

Th problem comes with the rectus and the shape of the pole.  the ejector sleeve does not fit inside the hole - I tried putting flats on it to match the pole profile but it was still a crappy fit - so I did away with rectus fitting and used a straight pnumatic fitting then pole hose to the reel

hope this makes sense - if not I'll do you some piccy's
Darran
Logged
Never argue with an idiot, they will only bring you down to their level, and beat you with experience

andyralph

  • Posts: 362
Re: Ova 8
« Reply #2 on: February 12, 2021, 03:29:25 pm »
Hi yes some pics will be good thanks andy
Logged

Smudger

  • Posts: 13438
Re: Ova 8
« Reply #3 on: February 12, 2021, 03:40:48 pm »
OK
Logged
Never argue with an idiot, they will only bring you down to their level, and beat you with experience

NWH

  • Posts: 16952
Re: Ova 8
« Reply #4 on: February 12, 2021, 03:41:44 pm »
Go on YouTube m8 Squeaky clean Dave will show you how it’s done.
Logged

Smudger

  • Posts: 13438
Re: Ova 8
« Reply #5 on: February 12, 2021, 03:45:19 pm »
thats a standard set up Nigel - not tubeless - altho very similar you just cut the pole hose to the end of the pole and use a connector there

Darran
Logged
Never argue with an idiot, they will only bring you down to their level, and beat you with experience

NWH

  • Posts: 16952
Re: Ova 8
« Reply #6 on: February 12, 2021, 03:56:50 pm »
Oh ok sorry I thought he was fitting a univalve.
Logged

Smudger

  • Posts: 13438
Re: Ova 8
« Reply #7 on: February 12, 2021, 04:37:34 pm »
thats ok Nigel - it is but he wants it tubeless as well - I made mine 'tubeless' in regards that when you disconnect you don't have trailing pole hose - you can't do tubeless like an slx with a rectus 21 setup

but the fitting method you pointed out is spot on

Darran
Logged
Never argue with an idiot, they will only bring you down to their level, and beat you with experience

andyralph

  • Posts: 362
Re: Ova 8
« Reply #8 on: February 12, 2021, 06:44:37 pm »
Hi can u put some photos of how u use it thanks andy
Logged

Smudger

  • Posts: 13438
Re: Ova 8
« Reply #9 on: February 13, 2021, 08:58:28 pm »
I'll get some tomorrow - had the covid jab - it wiped me out today - sorry

Darran
Logged
Never argue with an idiot, they will only bring you down to their level, and beat you with experience

Smudger

  • Posts: 13438
Re: Ova 8
« Reply #10 on: February 14, 2021, 02:40:36 pm »

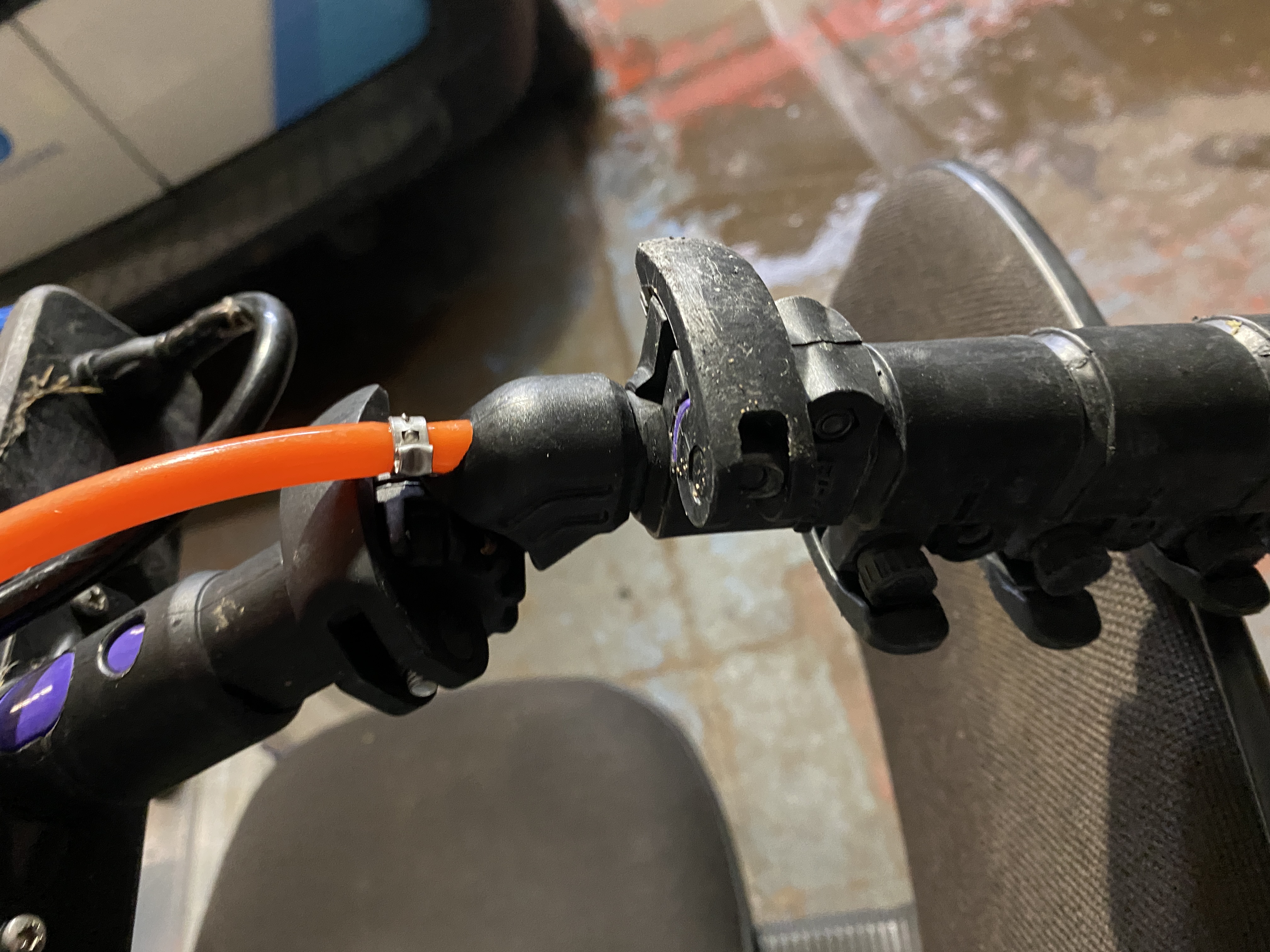

In photo one you will see we turn section 1 180 degrees this puts the clamp on the opposite side to the rest and you don't accidentally pull out the goose neck

Darran
Logged
Never argue with an idiot, they will only bring you down to their level, and beat you with experience

Splash & dash

  • Posts: 4364
Re: Ova 8
« Reply #11 on: February 14, 2021, 04:29:32 pm »
Quote from: Smudger on February 14, 2021, 02:40:36 pm







In photo one you will see we turn section 1 180 degrees this puts the clamp on the opposite side to the rest and you don't accidentally pull out the goose neck

Darran

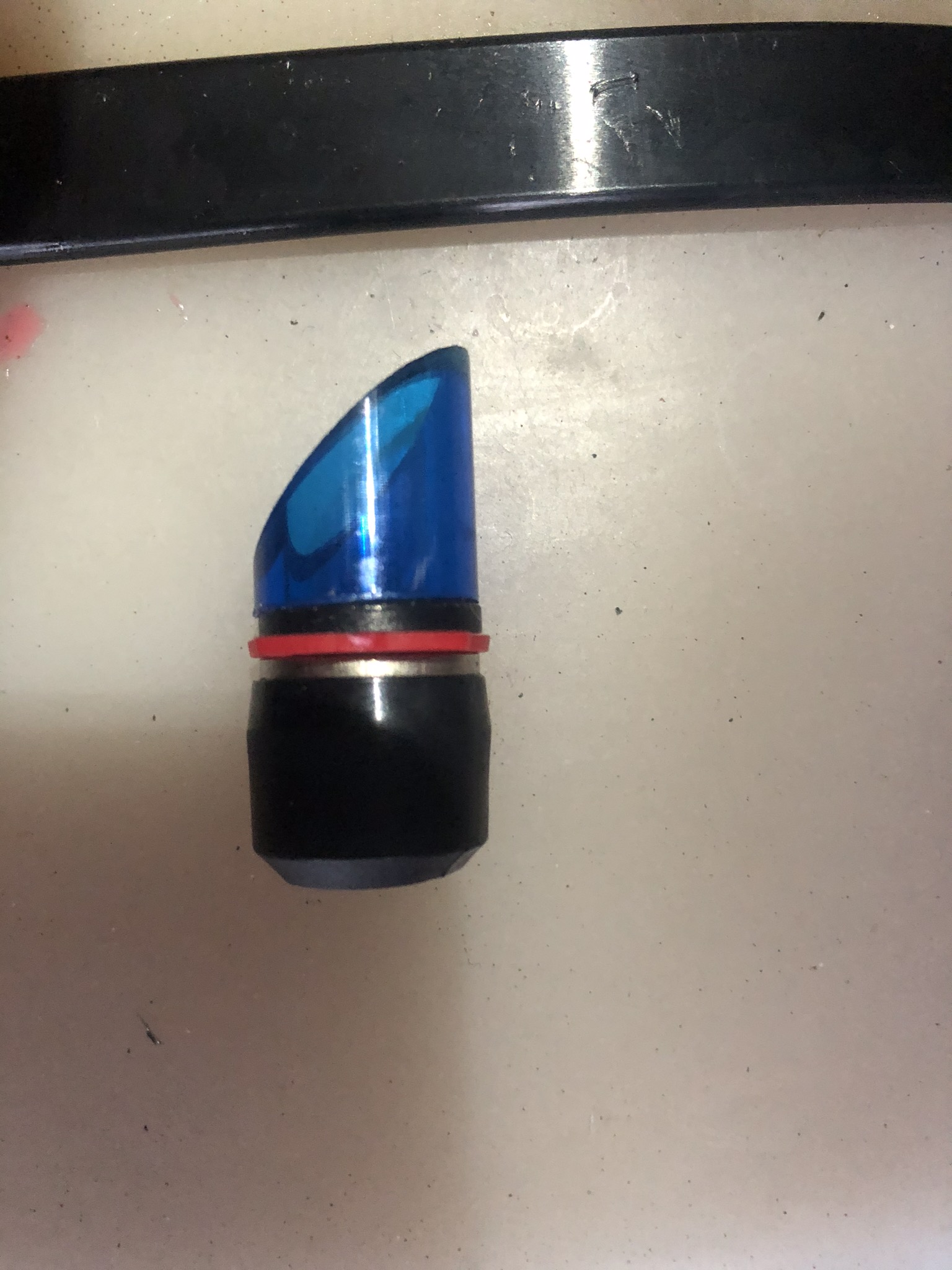

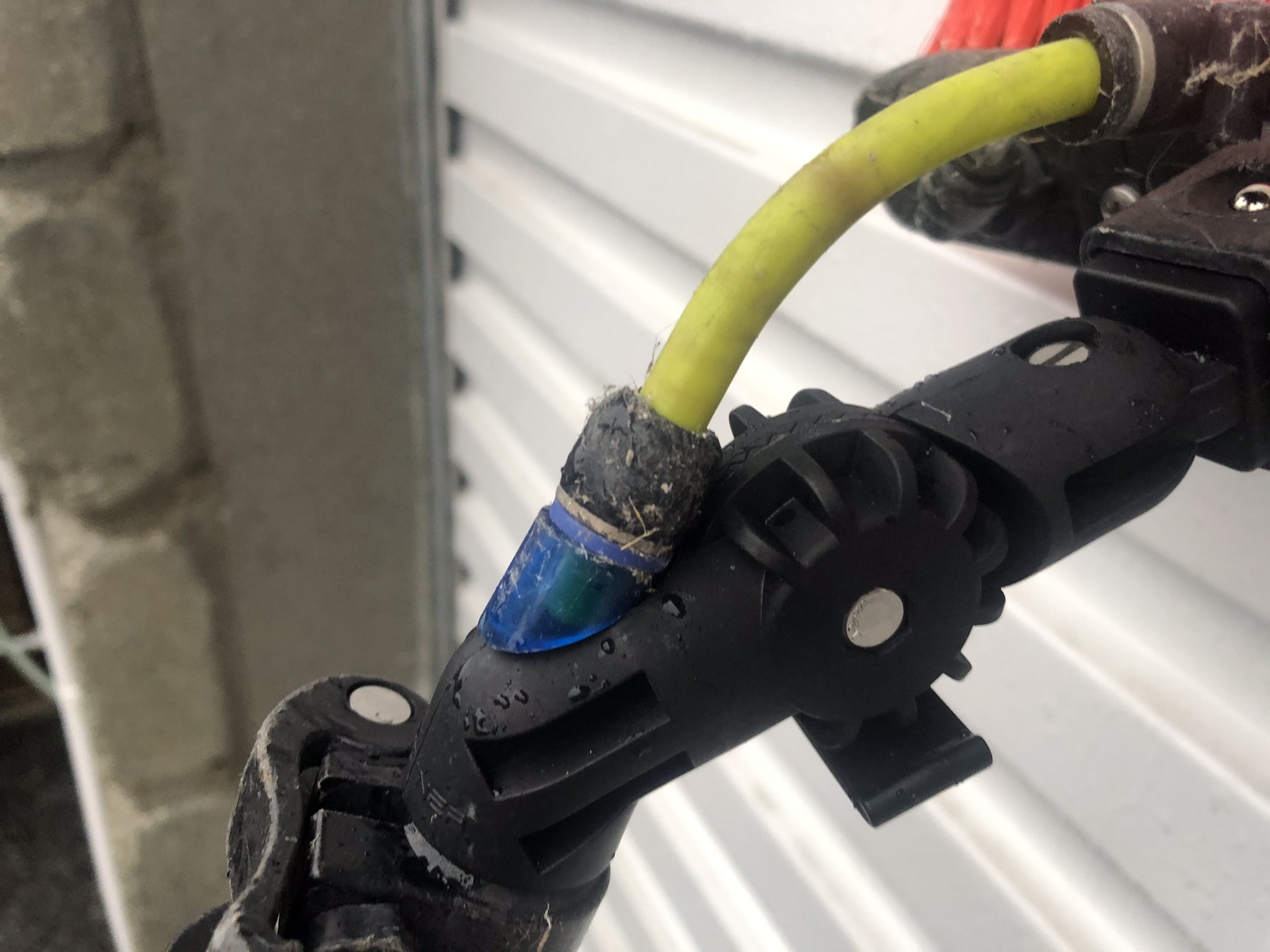

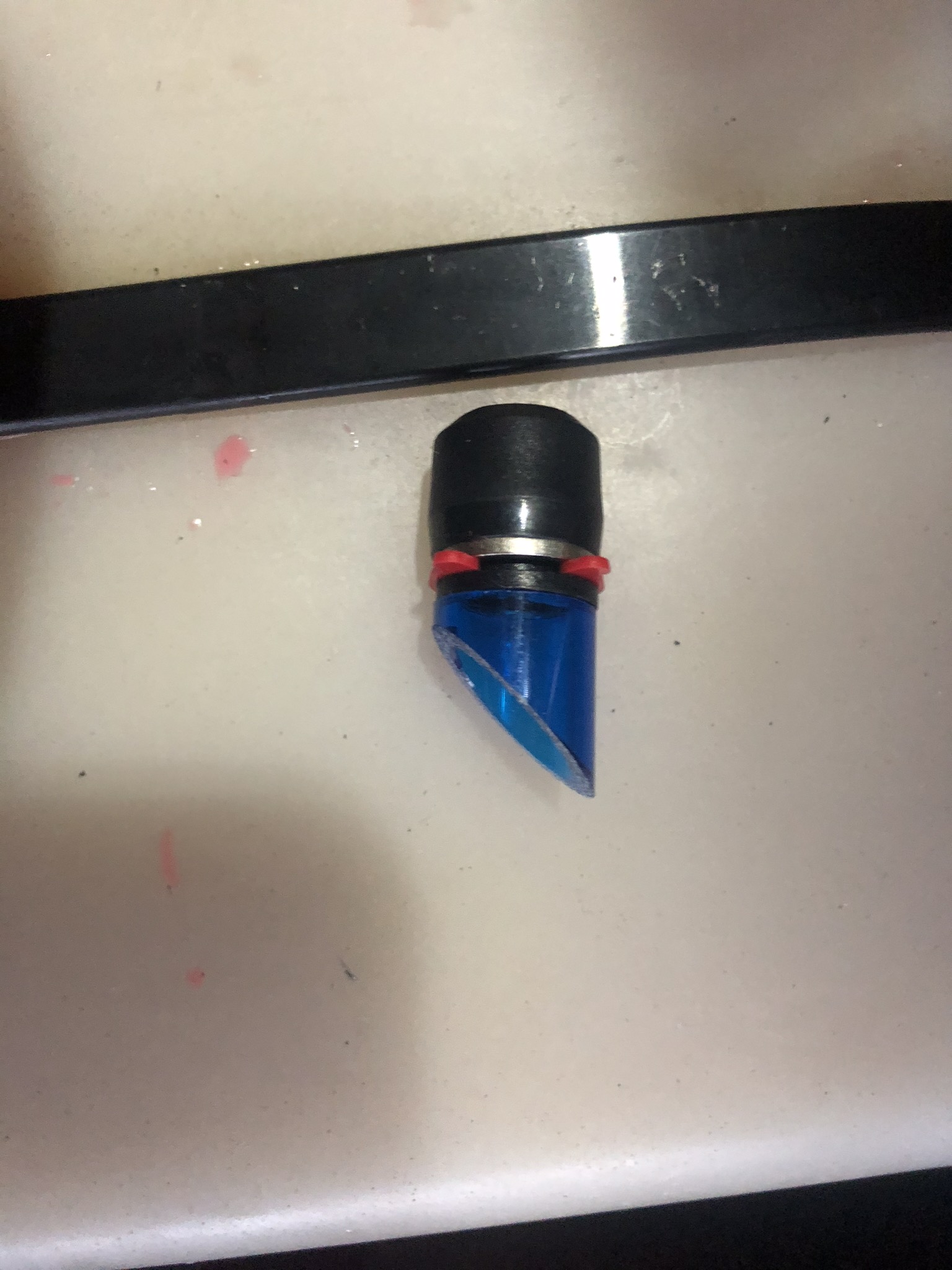

Get yourself some of theses for the top of the pole they are removable and re usable so much easier than clips , they are usually for sale on eBay it’s a window cleaner from Yorkshire way that sells them .
Logged

andyralph

  • Posts: 362
Re: Ova 8
« Reply #12 on: February 14, 2021, 04:32:44 pm »
They look good have u got a link thanks andy
Logged

Ched

  • Posts: 441
Re: Ova 8
« Reply #13 on: February 14, 2021, 04:45:11 pm »
Quote from: andyralph on February 14, 2021, 04:32:44 pm
They look good have u got a link thanks andy
These look very similar http://ebay.to/2NoOJvJ might be a mk2 version?
Logged

Splash & dash

  • Posts: 4364
Re: Ova 8
« Reply #14 on: February 14, 2021, 05:08:46 pm »
Quote from: Ched on February 14, 2021, 04:45:11 pm
Quote from: andyralph on February 14, 2021, 04:32:44 pm
They look good have u got a link thanks andy
These look very similar http://ebay.to/2NoOJvJ might be a mk2 version?


Yes that’s it , the link you have put up shows the latest version , they are very good
Logged

Splash & dash

  • Posts: 4364
Re: Ova 8
« Reply #15 on: February 14, 2021, 05:09:15 pm »
Quote from: andyralph on February 14, 2021, 04:32:44 pm
They look good have u got a link thanks andy

See the post below 👍
Logged

Smudger

  • Posts: 13438
Re: Ova 8
« Reply #16 on: February 14, 2021, 05:45:26 pm »
cheers splash - I did have a couple but they went awol and didn't order any more

Darran
Logged
Never argue with an idiot, they will only bring you down to their level, and beat you with experience
