[DaveG]

I've never asked so many questions

Does anyone have a wiring diagram for the above controller

Cheers

[Ian Sheppard]

I've never asked so many questions

Does anyone have a wiring diagram for the above controller

Cheers

http://www.springltd.co/upload/V11%20Quick%20Start%20P1%20V2.1.pdf

[DaveG]

Many thanks for the quick reply Ian

Dave

[DaveG]

My one has 2 black and 2 red wires

[Ben wood]

Dave yours sounds like one with a split charge relay built in. I may be wrong

[DaveG]

Cheers Ben,

I think its a case of 2 wires go to battery and the other 2 go to pump, but which ones?

[Fakenham Tony]

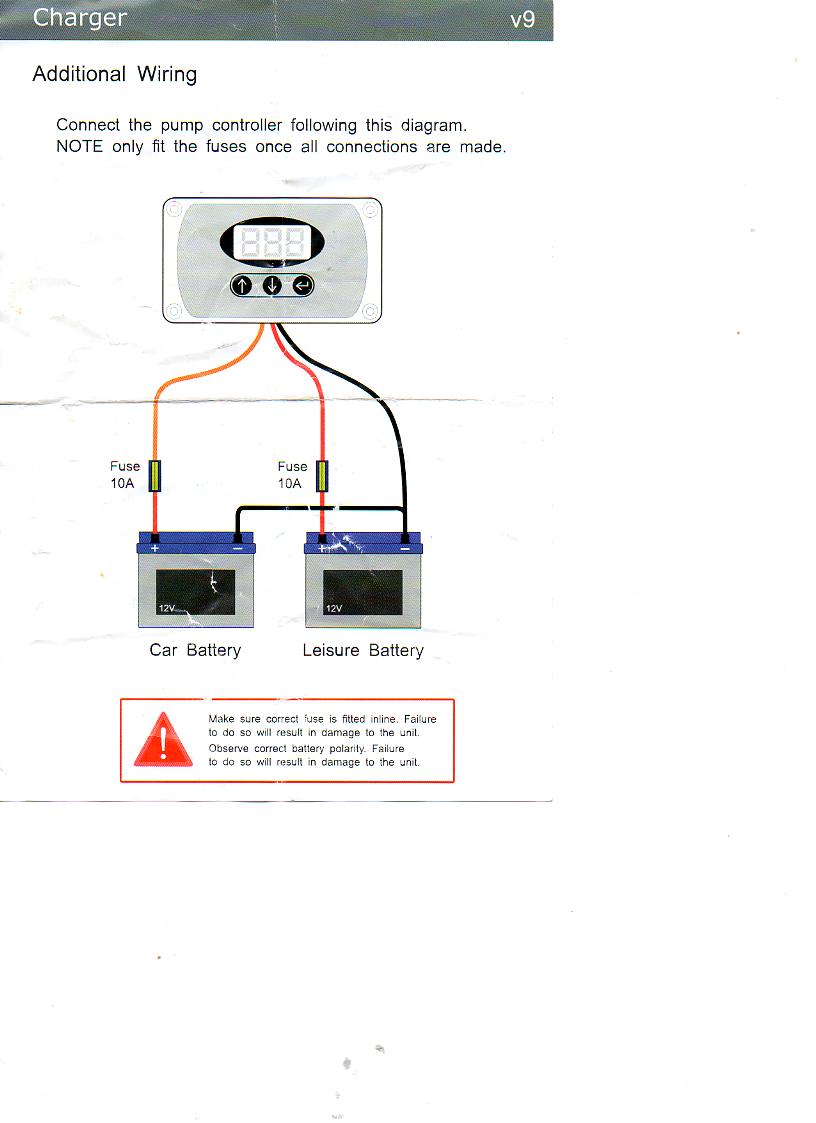

Does this help?

[DaveG]

Thanks for that Tony, but the controller I have has 4 wires coming out of the bottom, 2 red and 2 black.

At a guess the longer ones go to the battery?

[Ben wood]

Yeah sorry mate 2 too the batt and the others to the pump mate

[Ian Sheppard]

Thanks for that Tony, but the controller I have has 4 wires coming out of the bottom, 2 red and 2 black.

At a guess the longer ones go to the battery?

Dave on the back of the controller will be a serial number and a version ref it will Be V then a number what version is it?

[DaveG]

Thanks for that Tony, but the controller I have has 4 wires coming out of the bottom, 2 red and 2 black.

At a guess the longer ones go to the battery?

Dave on the back of the controller will be a serial number and a version ref it will Be V then a number what version is it?

Hi Ian,

It says 6 then some other numbers that are worn away....

Cheers

[DaveG]

Yeah sorry mate 2 too the batt and the others to the pump mate

Cheers anyway Ben,

Might have to chuck a fuse on both reds and hope for the best

Feels like mission impossible, red black red black, which one........

[Ian Sheppard]

Yeah sorry mate 2 too the batt and the others to the pump mate

Cheers anyway Ben,

Might have to chuck a fuse on both reds and hope for the best

Feels like mission impossible, red black red black, which one........

Dave Let me dig out the instructions for the V6, we stopped building these variants a while back but will have the wiring info somewhere.

It will be one red and black to the Bat and one red and black to the pump. Let me find a diagram as if you wire with the wrong polarity it will blow the board.

[DaveG]

Top man! Thanks very much Ian

[Ian Sheppard]

Still looking for the Diagram in the mean time this may help.

The V6 were designed with two red and two black cables, with number idents on them, 1 (red) and 2 (black) to the Battery, 3 (red) and 4 (black) being to the pump. You can also tell the connections apart as the two power cables had male crimps, pump cables both had female crimps,

Heres hoping the cables still have the number tags on them

[DaveG]

You're a star Ian, thanks!!

The 2 long cables have 3 and 4 on and the short ones have male crimps

Sorted
