[kwok]

My wand was dripping water recently, had just unscrew the jet and the ball bearing had lodged into the spring and everything popped out and now don't know which goes where, please help as I have a job tomorrow.

[Mike Halliday]

Spring and ball bearing go into the wire  filter, held in by the slotted (threaded) washer. This is a complete unit that fits into the wand then the T jet goes into the head and screws onto the wand holding in the filter.

[Mike Halliday]

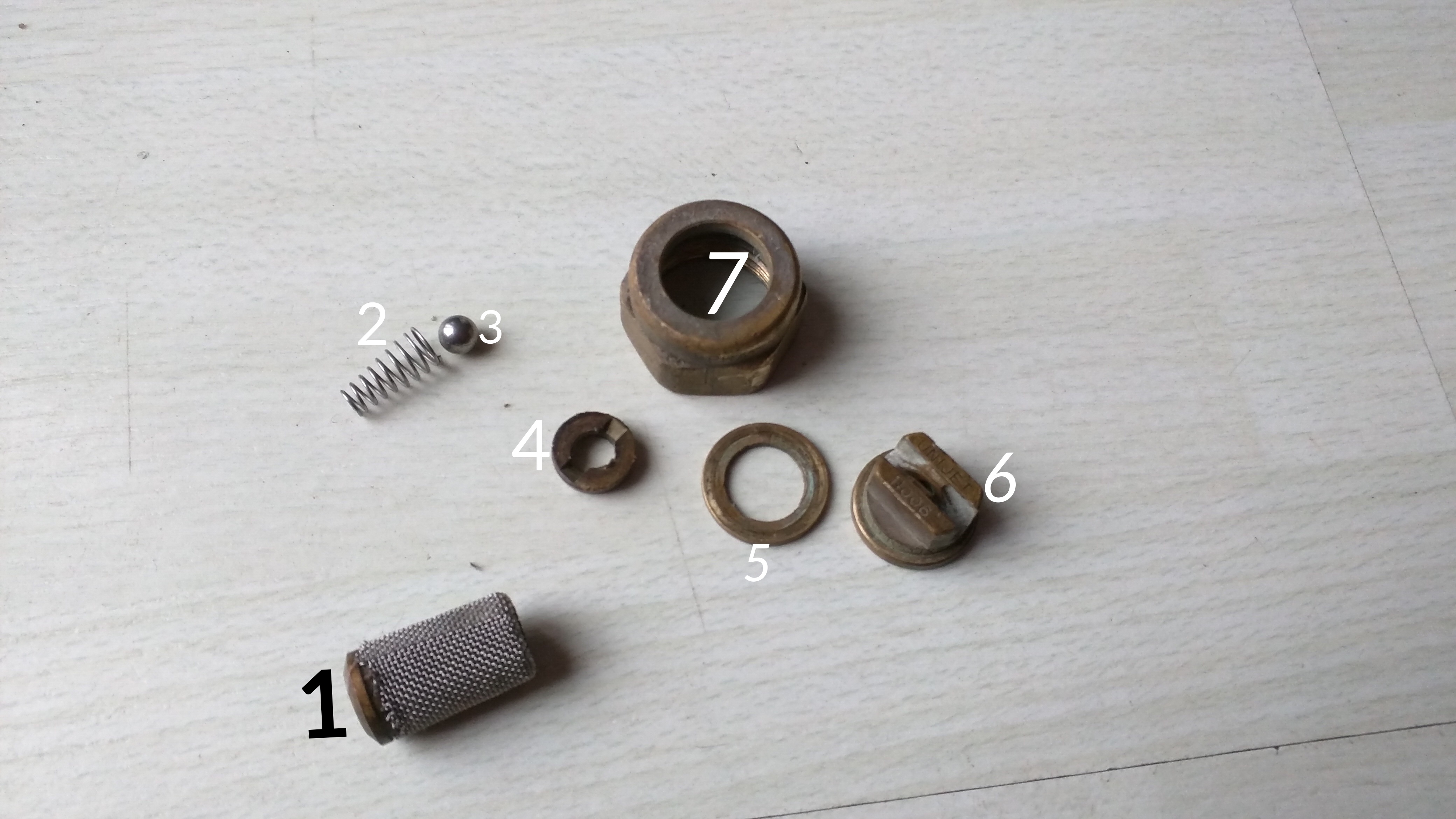

2+3 goes into 1 held in by 4 this is the complete filter.

5+6 goes into 7 then screws onto the wand holding the filter in place

[kwok]

That is awesome Mike, really appreciate for your help, thank you very much indeed. You're a life saver.

[kwok]

Hi Mike
Sorry to trouble you again, its worst than before, I've probably placed things wrong.
Does the ball bearing goes into filter before spring ?
which end of the filter goes into female nut first ?
which side of the slotted washer faces the filter as it's not threaded ?

[Mike Halliday]

Couple of options....

The spring & ballbearing are a non drip valve, you don’t need them you could leave them out. Same goes for the whole filter section you could just fit the  jet into the nut and screw it on  if it a bigger jet 02-03 then it won’t block too often if it a 01 then you might need to persevere with a bit of trail & error

[kwok]

Cool, thanks Mike, I'll have another go.

Cheers

[Chris D Thomas]

Not sure if you still need help but we have a bunch of self help videos on our website to show you how to fit a repair kit, amongst others. May help. www.alltec.co.uk/extras/videos.

[kwok]

Thank you for your info.
It's sorted. Wasn't the jet, it was the trigger..
